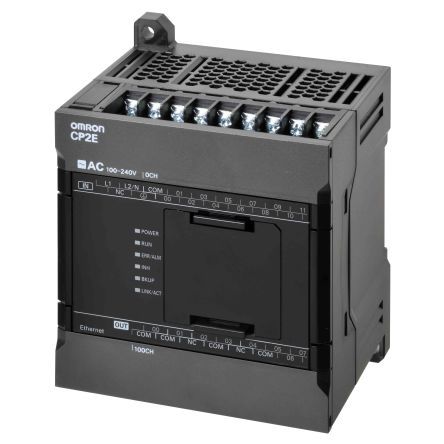

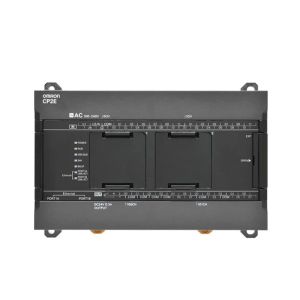

PLC Programming CPU Programmable Logic Controllers Micro PLC designed to support data collection and Machine to Machine communication CP2E series CP2EN40DRD

Micro PLC designed to
support data collection and
Machine to Machine communication
• Network Model features Ethernet connectivity
+ 4-axis positioning: CP2E-N type
• Standard Model features axis control: CP2E-S type
• Essential Model features basic control: CP2E-E type

Features
• Two built-in Ethernet ports with Ethernet switching function:
Ready for Machine to Machine communication (CP2E-N type)
• Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
• Four-axis positioning function with linear interpolation (CP2E-N type)
• Battery-free operation and backup reduce maintenance
• Function blocks and structured text improve programming efficiency
• Operating temperature range from -20 to 60 °C for reliable use in special applications
• Input/output terminal LED indicators for quick troubleshootin

Programming Devices
Software
Product name
Model
PFP-50N
PFP-100N
PFP-100N2
PFP-M
Specifications
Number of
licenses
FA Integrated Tool
Package
CX-One Lite
Ver.4.@
FA Integrated Tool
Package
CX-One
Package Ver. 4.@
CX-One Lite is a subset of the complete CX-One package that provides only the Support
Software required for micro PLC applications.
CX-One Lite runs on the following OS.
OS: Windows XP (Service Pack 3 or higher, 32-bit version) / Windows Vista (32-bit/64-bit
version) / Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Win
dows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version)
CX-One Lite Ver. 4.@ includes Micro PLC Edition CX-Programmer Ver.9.@.
CX-One is a comprehensive software package that integrates Support Software for OMRON
PLCs and components. CX-One runs on the following OS.
OS: Windows XP (Service Pack 3 or higher, 32-bit version) / Windows Vista (32-bit/64-bit
version) / Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Win
dows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version)
CX-One Ver. 4.@ includes CX-Programmer Ver. 9.@.
1 license
Media
DVD
1 license *1 D
Model
CXONE-LT01D-V4
VD CXONE-AL01D-V4
Note: 1. CP2E CPU Units are supported by CX-One version 4.51 or higher and CX-Programmer version 9.72 or higher.
2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
3. For details, refer to the CX-One Catalog (Cat. No. R134).
*1.Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

General Specifications
*1.Total of 110 mm with mounting brackets.
*2.Excluding cables.
*3.Use the external power supply to power input devices. Do not use it to drive output devices.
*4.This is the rated value for the maximum system configuration. Use the following formula to calculate power consumption for CPU Units with
DC power.
Formula: DC power consumption = (5V current consumption × 5 V/70% (internal power efficiency) + 24V current consumption) × 1.1(current
fluctuation factor)
The above calculation results show that a DC power supply with a greater capacity is required.
Note:1. The Expansion I/O Units and Expansion Units work under the same conditions as the CPU Units unless otherwise specified.
Item AC power supply DC power supply
Model CP2E-@@@D@-A CP2E-@@@D@-D
Enclosure Mounted in a panel
Dimensions (H × D × W)
CPU Unit with 14 or 20 I/O points (CP2E-@14/20D@-@): 90mm *1 ×80mm *2 × 86mm
CPU Unit with 30 I/O points (CP2E-@30D@-@): 90mm *1 × 80mm *2 × 130mm
CPU Unit with 40 I/O points (CP2E-@40D@-@): 90mm *1 × 80mm *2 × 150mm
CPU Unit with 60 I/O points (CP2E-@60D@-@): 90mm *1 × 80mm *2 × 195mm
Weight
CPU Unit with 14 I/O points (CP2E-@14D@-@): 335g max.
CPU Unit with 20 I/O points (CP2E-@20D@-@): 340g max.
CPU Unit with 30 I/O points (CP2E-@30D@-@): 580g max.
CPU Unit with 40 I/O points (CP2E-@40D@-@): 640g max.
CPU Unit with 60 I/O points (CP2E-@60D@-@): 780g max.
Electrical
specifications
Supply voltage 100 to 240 VAC 50/60 Hz 24 VDC
Operating voltage range 85 to 264 VAC 20.4 to 26.4 VDC
Power consumption
15 VA/100 VAC max.
25 VA/240 VAC max. (CP2E-@14/20D@-A) 13W max. (CP2E-@14/20D@-D)
50 VA/100 VAC max.
70 VA/240 VAC max. (CP2E-@30/40/60D@-A) 20W max. (CP2E-@30/40/60D@-D) *4
Inrush current
120 VAC, 20 A for 8 ms max. for cold start at room
temperature
240 VAC, 40 A for 8 ms max. for cold start at room
temperature
24 VDC, 30A for 20 ms max. for cold start at room
temperature
External power supply *3 Not provided. (CP2E-@14/20D@-A)
24 VDC, 300 mA (CP2E-@30/40/60D@-A) Not provided.
Insulation resistance 20 MΩ min. (at 500 VDC) between the external AC
terminals and GR terminals
Not csolated between primary and secondary DC
power supplies
Dielectric strength
2,300 VAC 50/60Hz for 1 min between AC external and
GR terminals
Leakage current: 5 mA max.
Not csolated between primary and secondary DC
power supplies
Power interrupt time 10 ms min. 2 ms min.
Application
environment
Ambient operating
temperature-20 to 60°C
Ambient humidity 10% to 90%
Atmosphere No corrosive gas.
Ambient storage temperature-20 to 75°C (excluding battery)
Altitude 2,000 m max.
Pollution degree 2 or less: Conforms to IEC61010-2-201.
Noise resistance 2 kV on power supply line (Conforms to IEC61000-4-4.)
Overvoltage category Category II: Conforms to IEC61010-2-201.
EMC immunity level Zone B
Vibration resistance
Conforms to IEC60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz
Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)
Shock resistance Conforms to IEC60068-2-27.
147 m/s2, 3 times in X, Y, and Z directions
Terminal block Fixed (not removable)
Terminal screw size M3
Applicable standards Conforms to EC Directives.
Grounding method Ground to 100Ω or less.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
