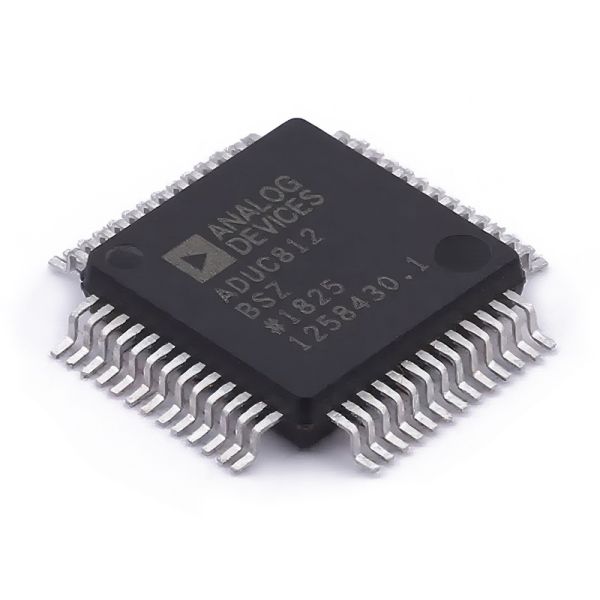

    ADUC812BSZ-REEL 8-bit Microcontroller MCU with 12-Bit ADC 8K Bytes Flash Memory and 8051 Compatible Core

    Ask Lasest Price
    Brand Name : ADI
    Model Number : ADUC812BSZ-REEL
    Certification : rohs
    Price : Consult
    Payment Terms : T/T,Western Union
    Supply Ability : 100000
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    ADUC812BSZ-REEL 8-bit Microcontroller MCU with 12-Bit ADC 8K Bytes Flash Memory and 8051 Compatible Core

    ADUC812BSZ-REEL 8-bit Microcontrollers - MCU 12-BIT ADC WITH EMBEDDED MCU I.C.

    FEATURES

    • Analog I/O

      • 8-Channel, High Accuracy 12-Bit ADC
      • On-Chip, 100 ppm/C Voltage Reference
      • High Speed 200 kSPS
      • DMA Controller for High Speed ADC-to-RAM Capture
      • 2 12-Bit Voltage Output DACs
      • On-Chip Temperature Sensor Function
    • Memory

      • 8K Bytes On-Chip Flash/EE Program Memory
      • 640 Bytes On-Chip Flash/EE Data Memory
      • 256 Bytes On-Chip Data RAM
      • 16M Bytes External Data Address Space
      • 64K Bytes External Program Address Space
    • 8051 Compatible Core

      • 12 MHz Nominal Operation (16 MHz Max)
      • 3 16-Bit Timer/Counters
      • High Current Drive Capability—Port 3
      • 9 Interrupt Sources, 2 Priority Levels
    • Power

      • Specified for 3 V and 5 V Operation
      • Normal, Idle, and Power-Down Modes
    • On-Chip Peripherals

      • UART and SPI® Serial I/O
      • 2-Wire (400 kHz I2C® Compatible) Serial I/O
      • Watchdog Timer
      • Power Supply Monitor

    APPLICATIONS

    • Intelligent Sensors Calibration and Conditioning
    • Battery-Powered Systems (Portable PCs, Instruments, Monitors)
    • Transient Capture Systems
    • DAS and Communications Systems
    • Control Loop Monitors (Optical Networks/Base Stations)

    GENERAL DESCRIPTION

    The ADuC812 is a fully integrated 12-bit data acquisition system incorporating a high performance self-calibrating multichannel ADC, dual DAC, and programmable 8-bit MCU (8051 instruction set compatible) on a single chip.

    The programmable 8051 compatible core is supported by 8K bytes Flash/EE program memory, 640 bytes Flash/EE data memory, and 256 bytes data SRAM on-chip.

    Additional MCU support functions include Watchdog Timer, Power Supply Monitor, and ADC DMA functions. Thirty-two programmable I/O lines, I2C compatible SPI and Standard UART Serial Port I/O are provided for multiprocessor interfaces and I/O expansion.

    Normal, idle, and power-down operating modes for both the MCU core and analog converters allow flexible power management schemes suited to low power applications. The part is specified for 3 V and 5 V operation over the industrial temperature range and is available in a 52-lead, plastic quad flatpack package.

    SPECIFICATIONS

    Manufacturer:Analog Devices Inc.
    Product Category:8-bit Microcontrollers - MCU
    RoHS:Details
    Core:8052
    Program Memory Size:8 kB
    Data RAM Size:256 B
    Package / Case:MQFP-52
    Maximum Clock Frequency:16 MHz
    ADC Resolution:12 bit
    Number of I/Os:34 I/O
    Supply Voltage - Min:2.7 V
    Supply Voltage - Max:5.25 V
    Mounting Style:SMD/SMT
    Data Bus Width:8 bit
    Minimum Operating Temperature:- 40 C
    Maximum Operating Temperature:+ 125 C
    Series:ADUC812
    Packaging:Reel
    Packaging:Cut Tape
    Packaging:MouseReel
    Brand:Analog Devices
    Development Kit:EVAL-ADUC812QSZ
    Height:2 mm
    Interface Type:I2C/SPI/TWI/UART
    Length:10 mm
    Moisture Sensitive:Yes
    Number of ADC Channels:8 Channel
    Number of Timers/Counters:3 Timer
    Processor Series:ADUC812
    Product Type:8-bit Microcontrollers - MCU
    Program Memory Type:Flash
    Factory Pack Quantity:800
    Subcategory:Microcontrollers - MCU
    Width:10 mm
    Unit Weight:0.017496 oz
