    TMP100NA/3K Temperature Sensor With I2C And SMBus Interface WithAlert Function In SOT-23 Package

    TMP100NA/3K Temperature Sensor With I2C And SMBus Interface With Alert Function In SOT-23 Package
    The TMP100 and TMP101 devices are digital temperature sensors ideal for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistor replacement. These devices offer exceptional accuracy without requiring calibration or external component signal conditioning.
    Key Features
    • Digital Output: SMBus™, Two-Wire, and I2C Interface Compatibility
    • Resolution: 9 to 12 Bits, User-Selectable
    • Accuracy: ±1°C (Typical) and ±2°C (Maximum) from –55°C to 125°C
    • Low Quiescent Current: 45-μA, 0.1-μA Standby
    • Wide Supply Range: 2.7 V to 5.5 V
    • TMP100 Features Two Address Pins
    • TMP101 Features One Address Pin and an ALERT Pin
    • 6-Pin SOT-23 Package
    Technical Description
    The TMP100 and TMP101 digital temperature sensors provide highly linear temperature measurement without complex calculations or look-up tables. The on-chip, 12-bit ADC offers resolutions down to 0.0625°C. Available in compact 6-Pin SOT-23 packages, these devices are ideal for space-constrained applications.
    The TMP100 device allows up to eight devices on one bus, while the TMP101 device offers an SMBus Alert function with up to three devices per bus, providing flexible system integration options.
    Applications
    • Power-Supply Temperature Monitoring
    • Computer Peripheral Thermal Protection
    • Notebook Computers and Cell Phones
    • Battery Management Systems
    • Office Machines and Thermostat Controls
    • Environmental Monitoring and HVAC
    • Electromechanical Device Temperature Monitoring
    Operating Temperature Range: −55°C to 125°C
    Device Specifications
    Part NumberPackageBody Size (Nominal)
    TMP100SOT-23 (6)2.90 mm × 1.60 mm
    TMP101SOT-23 (6)2.90 mm × 1.60 mm

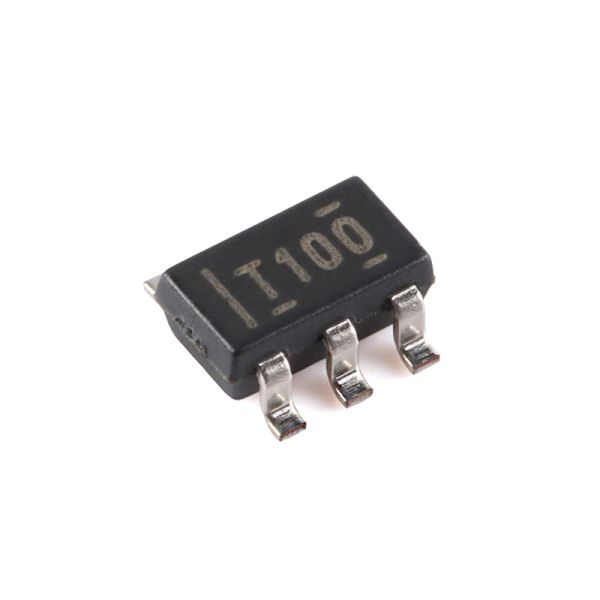

    TMP100NA/3K Temperature Sensor diagram and specifications TMP100NA/3K Temperature Sensor pin configuration TMP100NA/3K Temperature Sensor application circuit
    Packaging & Shipping
    Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
