    GD32F303RET6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The Arm® Cortex®-M4 RISC Core

    Ask Lasest Price
    Brand Name : GigaDevice
    Model Number : GD32F303RET6
    Certification : rohs
    Price : consult with
    Payment Terms : T/T,Western Union
    Supply Ability : 100000
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    GD32F303RET6 ARM Cortex-M4 32-bit General-purpose Microcontroller Based On The Arm® Cortex®-M4 RISC Core

    GD32F303RET6 ARM Cortex-M4 32-bit Microcontroller
    The GD32F303RET6 is a high-performance 32-bit general-purpose microcontroller based on the Arm® Cortex®-M4 RISC core, designed for industrial applications requiring advanced processing capabilities.
    Processor Core Features
    • Arm® Cortex®-M4 32-bit processor core
    • Operating frequency up to 120 MHz
    • Single-cycle multiplication and hardware divider
    • Integrated DSP instructions
    • Nested Vectored Interrupt Controller (NVIC)
    • 24-bit SysTick timer
    Advanced Architecture
    Based on the Armv7-M architecture, the Cortex®-M4 processor supports both Thumb and Thumb-2 instruction sets and includes comprehensive system peripherals:
    • Internal Bus Matrix with multiple bus interfaces
    • Flash Patch and Breakpoint (FPB)
    • Data Watchpoint and Trace (DWT)
    • Instrument Trace Macrocell (ITM)
    • Memory Protection Unit (MPU)
    • Serial Wire JTAG Debug Port (SWJ-DP)
    • Trace Port Interface Unit (TPIU)
    • Floating Point Unit (FPU)
    Ordering Information
    Ordering CodeFlash (KB)PackagePackage TypeTemperature Range
    GD32F303ZKT63072LQFP144Green Industrial-40°C to +85°C
    GD32F303ZIT62048LQFP144Green Industrial-40°C to +85°C
    GD32F303ZGT61024LQFP144Green Industrial-40°C to +85°C
    GD32F303ZET6512LQFP144Green Industrial-40°C to +85°C
    GD32F303ZCT6256LQFP144Green Industrial-40°C to +85°C
    GD32F303VKT63072LQFP100Green Industrial-40°C to +85°C
    GD32F303VIT62048LQFP100Green Industrial-40°C to +85°C
    GD32F303VGT61024LQFP100Green Industrial-40°C to +85°C
    GD32F303VGT71024LQFP100Green Industrial-40°C to +105°C
    GD32F303VET6512LQFP100Green Industrial-40°C to +85°C
    GD32F303VET7512LQFP100Green Industrial-40°C to +105°C
    GD32F303VCT6256LQFP100Green Industrial-40°C to +85°C
    GD32F303RKT63072LQFP64Green Industrial-40°C to +85°C
    GD32F303RIT62048LQFP64Green Industrial-40°C to +85°C
    GD32F303RGT61024LQFP64Green Industrial-40°C to +85°C
    GD32F303RET6512LQFP64Green Industrial-40°C to +85°C
    GD32F303RET7512LQFP64Green Industrial-40°C to +105°C
    GD32F303RCT6256LQFP64Green Industrial-40°C to +85°C
    GD32F303RCT7256LQFP64Green Industrial-40°C to +105°C
    GD32F303CGT61024LQFP48Green Industrial-40°C to +85°C
    GD32F303CET6512LQFP48Green Industrial-40°C to +85°C
    GD32F303CCT6256LQFP48Green Industrial-40°C to +85°C
    GD32F303CCT7256LQFP48Green Industrial-40°C to +105°C
    GD32F303CCU6256QFN48Green Industrial-40°C to +85°C

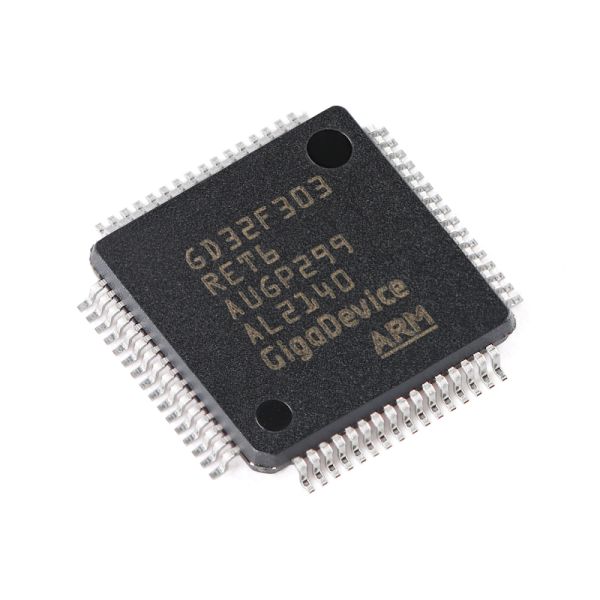

    GD32F303RET6 microcontroller package and pin configuration GD32F303RET6 microcontroller block diagram GD32F303RET6 microcontroller application examples
    Packaging & Shipping
    Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
    Frequently Asked Questions
    How to obtain the price?
    We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
    What is your delivery time?
    Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
    What are your payment terms?
    Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
    What are the shipping options?
    Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
