    DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications

    Ask Lasest Price
    Brand Name : TI
    Model Number : DAC8760IPWPR
    Certification : rohs
    Price : consult with
    Payment Terms : T/T,Western Union
    Supply Ability : 100000
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications

    DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC
    16-bit single-channel programmable current/voltage output DAC designed for 4-20mA current loop applications in industrial automation and control systems.
    Key Features
    • Current output: 4 mA to 20 mA; 0 mA to 20 mA; 0 mA to 24 mA
    • Voltage output: 0 V to 5 V; 0 V to 10 V; ±5 V; ±10 V; 0 V to 5.5 V; 0 V to 11 V; ±5.5 V; ±11 V (10% overrange)
    • ±0.1% FSR total unadjusted error (TUE) maximum
    • DNL: ±1 LSB maximum
    • Simultaneous voltage and current output
    • Internal 5-V reference (10 ppm/°C, maximum)
    • Internal 4.6-V power-supply output
    • Reliability features: CRC check and watchdog timer, thermal alarm, open alarm, short current limit
    • Wide temperature range: -40°C to 125°C
    • Packages: 6-mm × 6-mm 40-pin VQFN and 24-pin HTSSOP
    Applications
    • Analog output module
    • CPU (PLC controller)
    • HVAC valve and actuator control
    • Flow transmitter
    • Other sensor transmitter
    • Actuator
    Part Number Details
    Part NumberPackageBody Size (Nom)
    DACx760HTSSOP (24)7.80 mm × 4.40 mm
    DACx760VQFN (40)6.00 mm × 6.00 mm
    Product Images

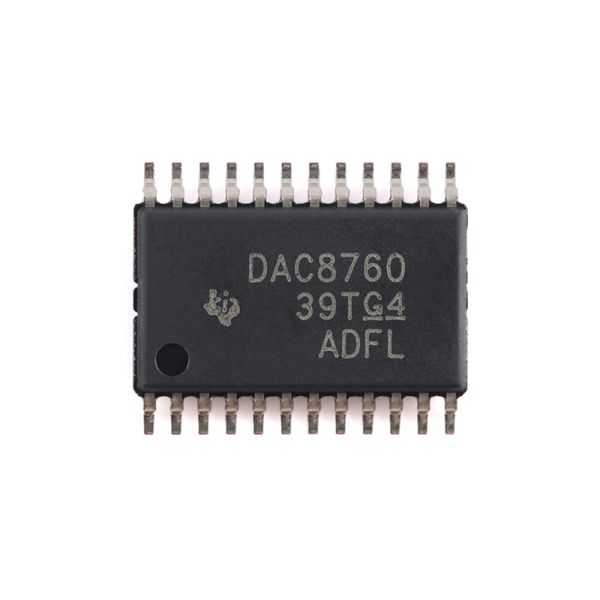

    DAC8760IPWPR 16-Bit DAC component view DAC8760IPWPR 16-Bit DAC package diagram DAC8760IPWPR 16-Bit DAC application circuit
    Packaging & Shipping
    Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
    Frequently Asked Questions
    How to obtain the price?
    We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
    What is your delivery time?
    Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
    What are your payment terms?
    Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
    What are the shipping options?
    Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
