    STSPIN32G4 High Performance 3-phase Motor Controller With Embedded STM32G4 MCU

    Ask Lasest Price
    Brand Name : ST
    Model Number : STSPIN32G4
    Certification : ROHS
    Price : consult with
    Payment Terms : T/T,Western Union
    Supply Ability : 10000
    Delivery Time : 5-8day
    • Product Details
    • Company Profile

    STSPIN32G4 High Performance 3-phase Motor Controller With Embedded STM32G4 MCU

    STSPIN32G4 High Performance 3-phase Motor Controller With Embedded STM32G4 MCU

    High performance 3-phase motor controller with embedded STM32G4 MCU

    Key Features
    • Motor supply voltage from 5.5 V to 75 V
    • Three-phase gate drivers:
      • 1 A sink/source current capability
      • VDS monitoring of the power stage MOSFETs
      • Integrated bootstrap diodes
      • I2C accessible configuration and status registers for best application fit
      • Cross-conduction prevention
    • STM32G431 microcontroller with 32-bit ARM® Cortex®-M4 MCU+FPU core:
      • Up to 170 MHz clock frequency
      • CORDIC mathematical hardware accelerator for trigonometric functions
      • 128 kB Flash memory with proprietary code readout protection (PCROP), securable memory area, 1 kB OTP
      • 32 kB SRAM memory with HW parity check
      • 2 x advanced times for motor control, 16-bit with up to 6 x PWM channels
      • 8 x general purpose timers
      • 2 x ADCs 12-bit resolution (up to 19 channels) with 4 Msps conversion rate
      • 4 x 12-bit DAC channels
      • 4 x ultra-fast rail-to-rail comparators
      • 3 x rail-to-rail operational amplifiers usable also in PGA mode
      • Internal high precision voltage reference
      • Up to 40 GPIOs
      • Full set of interfaces: I2C, SPI, UART and CAN
    • Self-supplied thanks to embedded flexible power management
      • VCC buck converter up to 200 mA, with programmable output and embedded MOSFET
      • 3.3 V LDO linear regulator up to 150 mA
      • Low quiescent linear regulator for MCU supply during standby
    • Full set of protection features: thermal shutdown, short-circuit, overload and UVLO
    • Possibility to control 2 motors simultaneously from the same MCU
    • Standby mode for reduced power consumption
    • On-chip debug support via SWD or JTAG
    • Extended temperature range: -40 to +125°C
    Technical Parameters
    SymbolParameterTest ConditionClassValueUnit
    HBMHuman Body ModelConforming to ANSI/ESDA/JEDEC JS-001-20142 kV
    CDMCharge Device ModelAll pins Conforming to ANSI/ESDA/JEDEC JS-002-2014500 V
    CDMCharge Device ModelCorner pins only Conforming to ANSI/ESDA/JEDEC JS-002-2014750 V

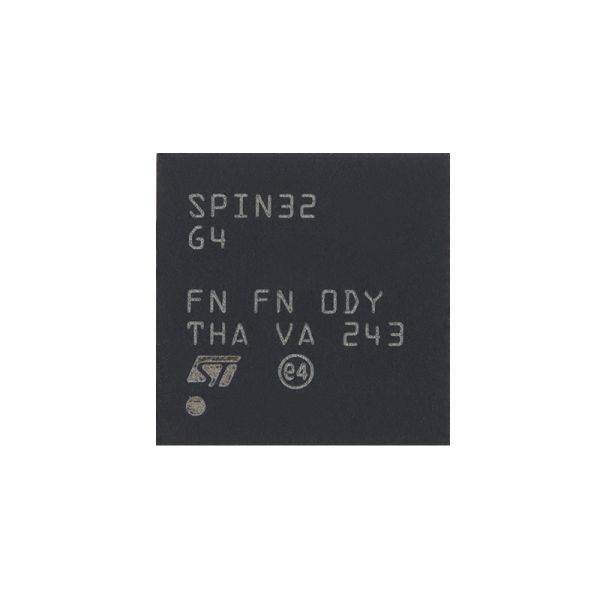

    STSPIN32G4 Motor Controller technical diagram STSPIN32G4 Motor Controller application schematic STSPIN32G4 Motor Controller package view
